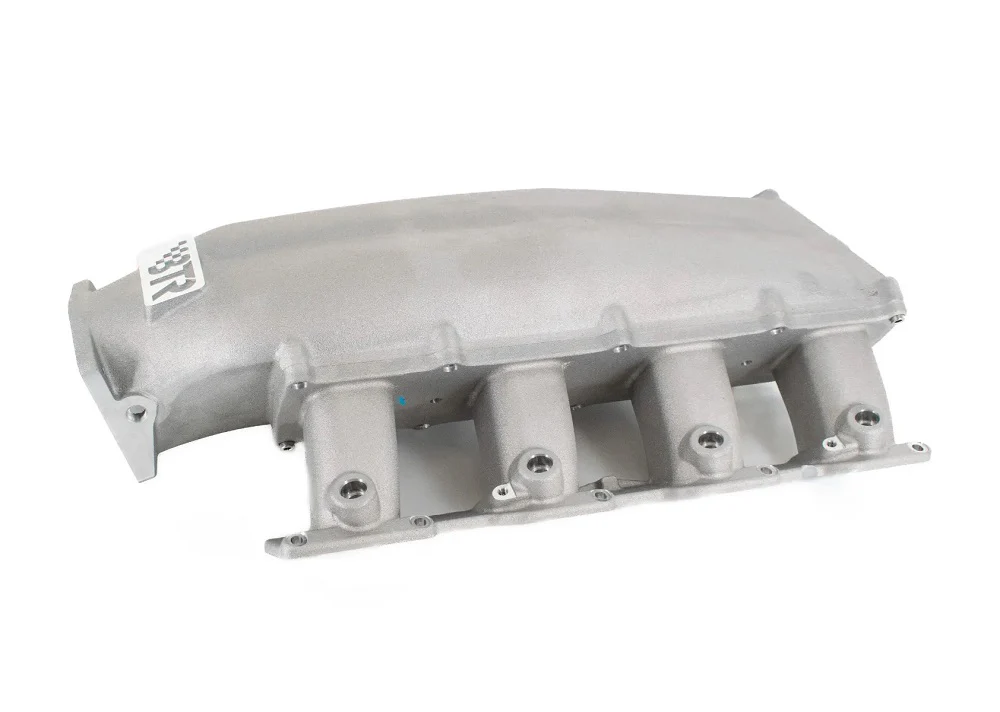

BTR TRINITY INTAKE MANIFOLD| GEN V LT4 WITH INJECTOR HOLES - NATURAL - TRA-LT4
BTR TRINITY INTAKE MANIFOLD - GEN V LT4 WITH INJECTOR HOLES - NATURAL - TRA-LT4
TRInity Series Intake Manifold for Gen V LT4 enginesĀ
Ā
Ā
The latest offering from BTR in high quality cast aluminum intake manifolds! TheTRInity is short runner, 3-piece design that allows for the ultimate in application flexibility. It is similar in concept to billet Intakes costing thousands more. Optimum operating range is 6000-8500 rpm and is primarily intended to bridge the gap between N/A and Boosted applications. It utilizes the high LT1 throttle body position and will accept DBW or cabled throttle bodies*, but yet it will fit in the tight confines of the C7, C6, C5 Corvette as well as the popular F-body platforms. The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped oārings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are achieved SAE oārings seated in a dovetailed oāring groove. Both the port mouth radius and the port match is CNC machined. TheĀ TRInity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18ā NPT on the rear. The manifold is available in Black Satin Texture powder coat. The manifold comes semi-assembled and includes all the hardware required to bolt it on. Runners and plenums can be purchased separately.
Ā
NOTE: 12663577 LT4 fuel line is recommended for optimal clearance.Ā
| BTR SKU | TRA-LT4 |
|---|---|
| Brand | Brian Tooley Racing |
| Part Type | Intake Manifold |
| Finish | NATURAL |
| Manifold Material | CAST ALUMINUM |
| Fuel Rails Included | NO |
| Manifold Port Style | LTx - GEN V |
| Engine Type | Gen V LT4 |
| Manifold Fueling Style | EFI |
$820.99
BTR TRINITY INTAKE MANIFOLD| GEN V LT4 WITH INJECTOR HOLES - NATURAL - TRA-LT4ā
$820.99
