ICT Billet LS Camaro Low Mount Alternator, Power Steering Pump Brackets LSX LS1 LS6 Billet

LS1 Camaro Alternator and Power Steering Pump Bracket Kit

  • Requires:  1998-02 LS1 Camaro (GTO any year) crank pulley (12553118)
  • Requires:  1998-02 LS1 Camaro power steering pump & pulley (63105 & 12559885)
  • Alternator: (19244779)(will not fit Corvette/CTSV/G8 or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage.  145+ alternators do not have the provision for the rear bracket.
  • Made in Wichita, KS from aerospace grade, USA billet aluminum

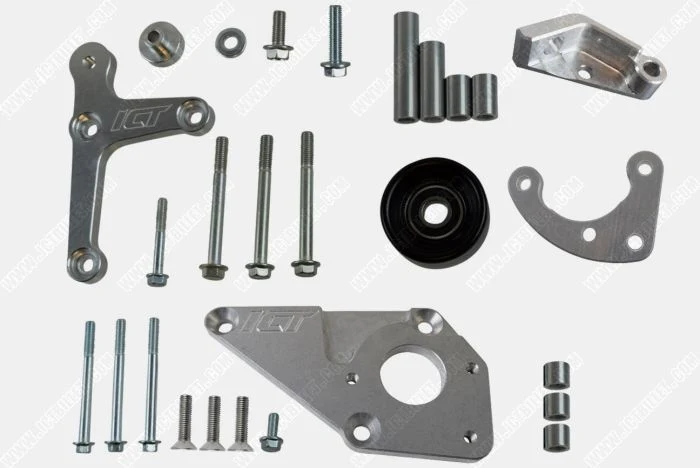

  • Includes: alternator bracket, power steering bracket, idler pulley, and mouting hardware
  • **Fits: all GM LS series engines

  **On "truck" engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445

Requires: 955K6 (95.5 inch) belt with 105 amp alternator and ICT Billet 551472-2 Sanden 7176 A/C kit
                987K6 (98.7 inch) belt with 105 amp alternator and ICT Billet 551474-2 Sanden 508 A/C kit
                895K6 (89.5 inch) belt with 105 amp alternator and ICT Billet 551495-2 R4 A/C kit
                790K6 (79.0 inch) belt with 105 amp alternator and factory belt tensioner
                980K6 (98.0 inch) belt with 105 amp alternator and ICT Billet 551585X-2 R4 A/C HD kit

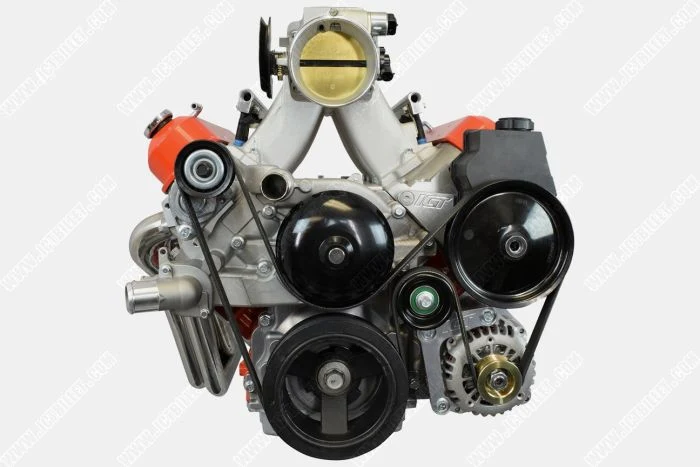

These brackets mounts the power steering pump and alternator in the 98-02 Camaro Z28 Factory Location
$189.99
ICT Billet LS Camaro Low Mount Alternator, Power Steering Pump Brackets LSX LS1 LS6 Billet—
$189.99

Product Information

Shipping & Returns

Description

LS1 Camaro Alternator and Power Steering Pump Bracket Kit

  • Requires:  1998-02 LS1 Camaro (GTO any year) crank pulley (12553118)
  • Requires:  1998-02 LS1 Camaro power steering pump & pulley (63105 & 12559885)
  • Alternator: (19244779)(will not fit Corvette/CTSV/G8 or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage.  145+ alternators do not have the provision for the rear bracket.
  • Made in Wichita, KS from aerospace grade, USA billet aluminum
  • Includes: alternator bracket, power steering bracket, idler pulley, and mouting hardware
  • **Fits: all GM LS series engines

  **On "truck" engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445

Requires: 955K6 (95.5 inch) belt with 105 amp alternator and ICT Billet 551472-2 Sanden 7176 A/C kit
                987K6 (98.7 inch) belt with 105 amp alternator and ICT Billet 551474-2 Sanden 508 A/C kit
                895K6 (89.5 inch) belt with 105 amp alternator and ICT Billet 551495-2 R4 A/C kit
                790K6 (79.0 inch) belt with 105 amp alternator and factory belt tensioner
                980K6 (98.0 inch) belt with 105 amp alternator and ICT Billet 551585X-2 R4 A/C HD kit



These brackets mounts the power steering pump and alternator in the 98-02 Camaro Z28 Factory Location
