ICT Billet LS Camaro R4 A/C Air Conditioner Compressor Bracket Kit| LS1 Camaro LSX AC

Product image 1
Product image 2

ICT Billet LS Camaro R4 A/C Air Conditioner Compressor Bracket Kit| LS1 Camaro LSX AC

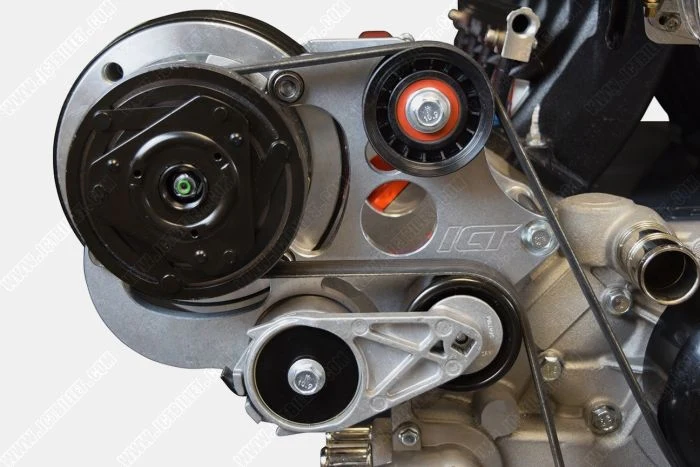

LS1 Camaro R4 A/C Compressor Heavy Duty Bracket Kit
  • Requires: 1998-02 Camaro LS1 (GTO any year) crank pulley (12553118)

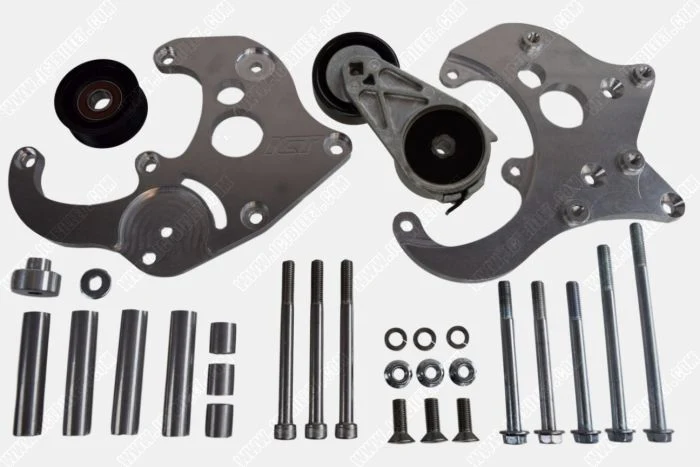

  • Includes:  A/C compressor bracket, belt tensioner,  and mounting hardware
  • Can be used with ACDELCO A/C compressor Part # 1520285 (has 4.25" pulley)
  • Made in Wichita, KS from aerospace grade, USA billet aluminum


Belt length with 105 amp alternator and ICT 551521-2: 970K6  (97.0 inch).
Belt length with 105 amp alternator and ICT 551669-2: 980K6  (98.0 inch).




This does NOT use the factory style LS vehicle a/c compressors (25891791)
If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley.
Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 55147
$289.99
ICT Billet LS Camaro R4 A/C Air Conditioner Compressor Bracket Kit| LS1 Camaro LSX AC—
$289.99

Product Information

Shipping & Returns

Description

LS1 Camaro R4 A/C Compressor Heavy Duty Bracket Kit
  • Requires: 1998-02 Camaro LS1 (GTO any year) crank pulley (12553118)
  • Includes:  A/C compressor bracket, belt tensioner,  and mounting hardware
  • Can be used with ACDELCO A/C compressor Part # 1520285 (has 4.25" pulley)
  • Made in Wichita, KS from aerospace grade, USA billet aluminum


Belt length with 105 amp alternator and ICT 551521-2: 970K6  (97.0 inch).
Belt length with 105 amp alternator and ICT 551669-2: 980K6  (98.0 inch).




This does NOT use the factory style LS vehicle a/c compressors (25891791)
If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley.
Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 55147
