ICT Billet LS Corvette Alternator Bracket Kit| LSX LS1 LS2 LS3 LS7 LS6 LS9 CTS-V

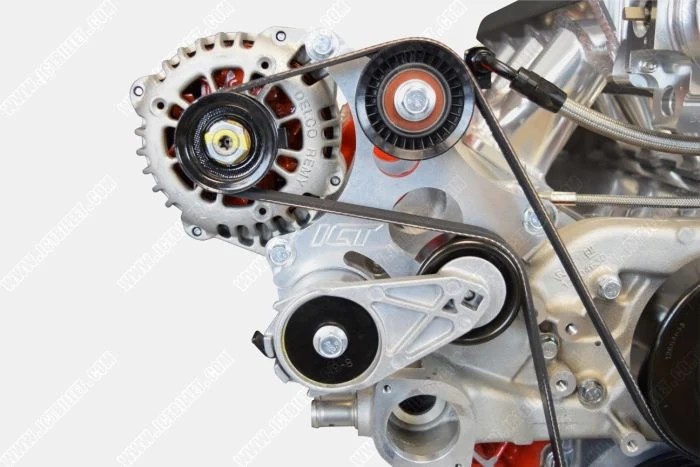

Product image 1

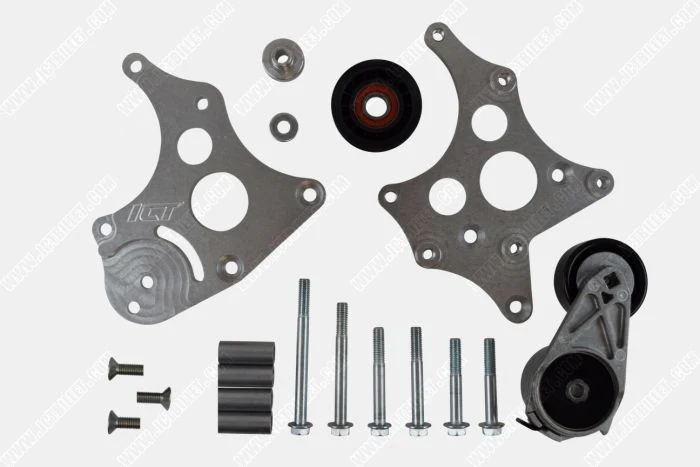

Product image 2

ICT Billet LS Corvette Alternator Bracket Kit| LSX LS1 LS2 LS3 LS7 LS6 LS9 CTS-V

Heavy Duty LS Alternator Bracket Kit
  • Requires:  Corvette (any year LS) (or CTSV/G8/SS) crank pulley (12560115)
  • Includes: alternator bracket, belt tensioner, idler pulley, and mounting hardware
  • Made in Wichita, KS from aerospace grade, USA billet aluminum
  • Alternator: Suggested part # 19244779 105 amp (will not fit CTS-V alternators. Corvette or 2010-up Camaro large bolt pattern alternators will require 551905 alternator adapter). Will fit any other LS powered vehicle alternators with any amperage.
  • Fits all GM LS series engines
  • If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

Belt length with the standard 105amp alternator and 551751-1 bracket: 2180K6 (85.8 inch)
Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479
$289.99
ICT Billet LS Corvette Alternator Bracket Kit| LSX LS1 LS2 LS3 LS7 LS6 LS9 CTS-V—
$289.99

Product Information

Shipping & Returns

Description

Heavy Duty LS Alternator Bracket Kit
  • Requires:  Corvette (any year LS) (or CTSV/G8/SS) crank pulley (12560115)
  • Includes: alternator bracket, belt tensioner, idler pulley, and mounting hardware
  • Made in Wichita, KS from aerospace grade, USA billet aluminum
  • Alternator: Suggested part # 19244779 105 amp (will not fit CTS-V alternators. Corvette or 2010-up Camaro large bolt pattern alternators will require 551905 alternator adapter). Will fit any other LS powered vehicle alternators with any amperage.
  • Fits all GM LS series engines
  • If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

Belt length with the standard 105amp alternator and 551751-1 bracket: 2180K6 (85.8 inch)
Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479
