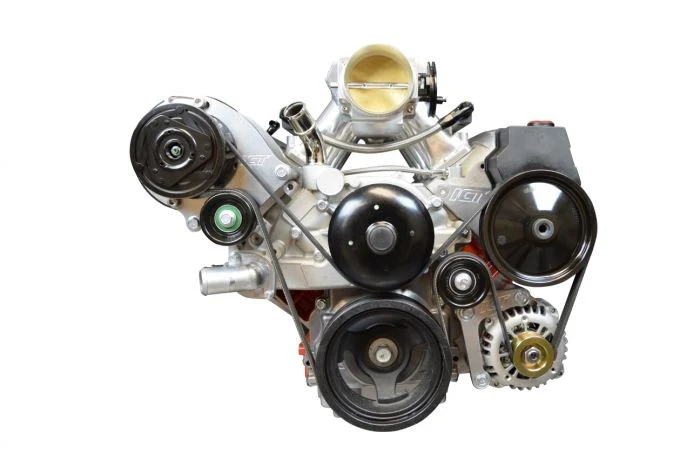

ICT Billet LS Truck - Billet Low Mount Alternator Bracket Kit w/ Pulley
LS TruckĀ Billet Alternator Bracket
- Requires: truck/SUV (or LS3/L99 Camaro) crank pulley (12634105)
- **Alternator: (19244779)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage. Ā 145+ amp alternators do not have the provision for the rear bracket.
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

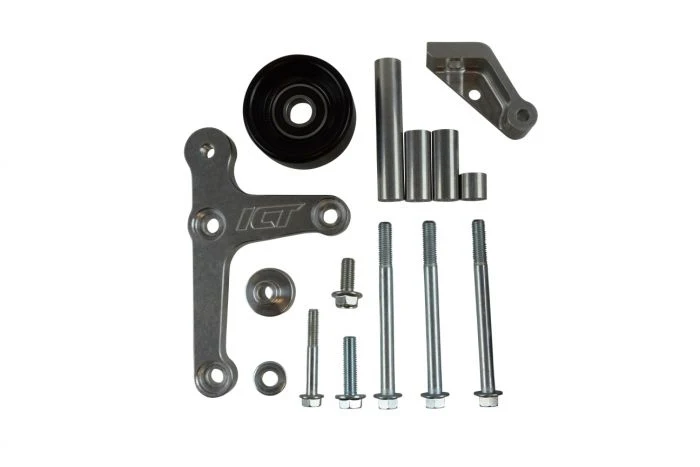

- Includes: Ā front & rear bracket, idler pulley, and mounting hardwareĀ
*May require slight grinding on block (see photos) if using a 145/160 amp alternator (105 amp alternator is a direct fit)
**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the 2nd M10-1.5mm hole.Ā This hole is in a non-critical part of the block that is away from the cylinder, oil, and water jackets.Ā Ā This bracket only bolts to the front face of the engine block.
This will require a 790K6 (79.0 inch) belt when used with the 551523-3 power steering pump bracket and 105 amp alternator (19244779). Ā For engines without power steering, Use ICT Billet belt kit 551550
$43.75
Original: $124.99
-65%ICT Billet LS Truck - Billet Low Mount Alternator Bracket Kit w/ Pulleyā
$124.99
$43.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LS TruckĀ Billet Alternator Bracket
- Requires: truck/SUV (or LS3/L99 Camaro) crank pulley (12634105)
- **Alternator: (19244779)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage. Ā 145+ amp alternators do not have the provision for the rear bracket.
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Includes: Ā front & rear bracket, idler pulley, and mounting hardwareĀ
*May require slight grinding on block (see photos) if using a 145/160 amp alternator (105 amp alternator is a direct fit)
**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the 2nd M10-1.5mm hole.Ā This hole is in a non-critical part of the block that is away from the cylinder, oil, and water jackets.Ā Ā This bracket only bolts to the front face of the engine block.
This will require a 790K6 (79.0 inch) belt when used with the 551523-3 power steering pump bracket and 105 amp alternator (19244779). Ā For engines without power steering, Use ICT Billet belt kit 551550
