ICT Billet LS Truck Saginaw Power Steering Pump & Alternator Bracket Kit

LS Power Steering Pump and Alternator Bracket Kit

Fits LSX 4.8L 5.3L 6.0L

When using a "truck" engine block (only has 1 mounting hole on the front of the block) you will be required to drill and tap a second M10-1.5mm mounting hole using drill template 551445. This is in a non-critical part of the block, away from the cylinder, oil, and water jackets.

• Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
• Uses a Saginaw type 1 power steering pump (factory LS truck pump)
• Compatible with: all LS series engines

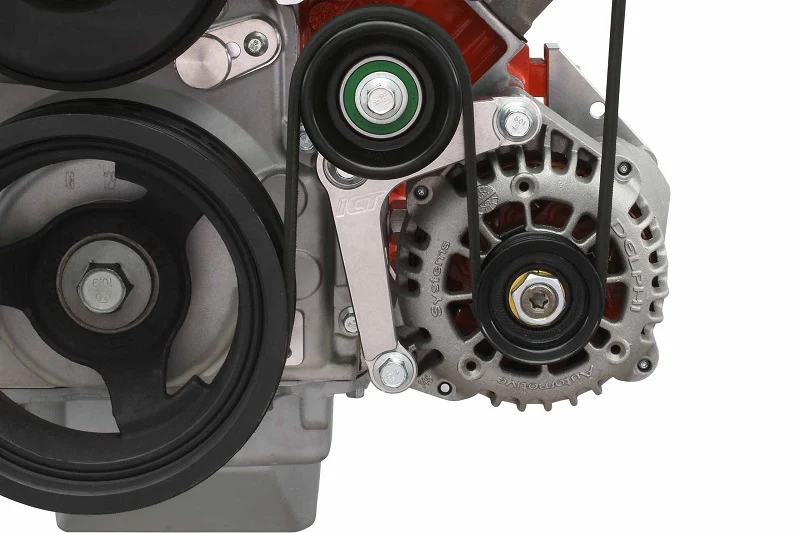

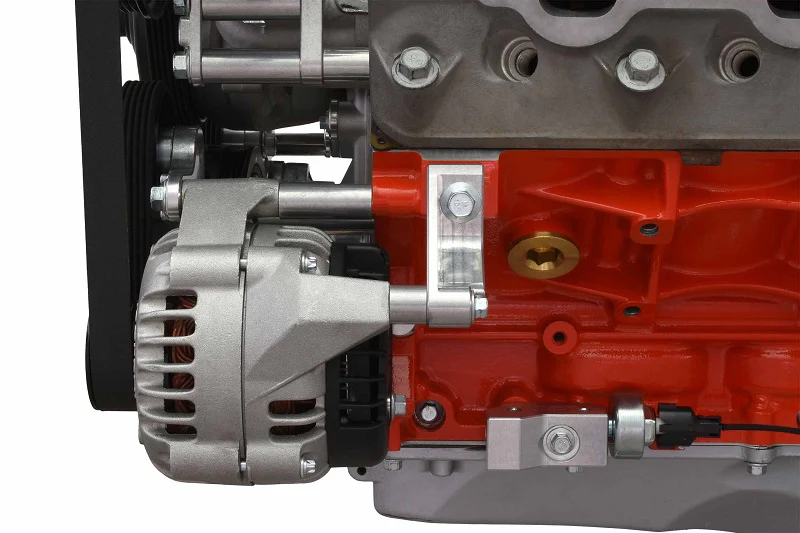

• Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators, unless using 551905 extension bracket)), will fit any other LS powered vehicle alternators with any amperage. 145 amp or larger alternators DO NOT have the provision for the rear bracket and may require block clearancing.
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

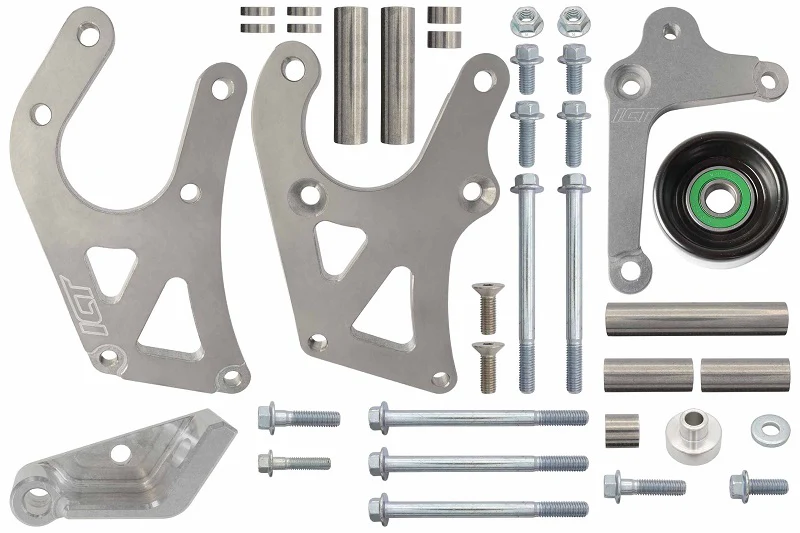

• Includes: part # 551321-LS01-3 and 551887-3 bracket kits
• Belt length: 79.2" (792K6) / 80.5" (805K6) with high amp alternator.
• Made from aerospace-grade billet aluminum
• Made in America

**does not include A/C bracket shown
