ICT Billet LS Truck Turbo Alternator Relocation Bracket for LS3 LS1 Water Pump

Product image 1
Product image 2
Product image 3

ICT Billet LS Truck Turbo Alternator Relocation Bracket for LS3 LS1 Water Pump

LS Truck Turbo Alternator Bracket



  • Water Pump - Compatible with:  1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)
  • Crank Pulley - Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
  • Alternator - Use 105 or 145 amp alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)

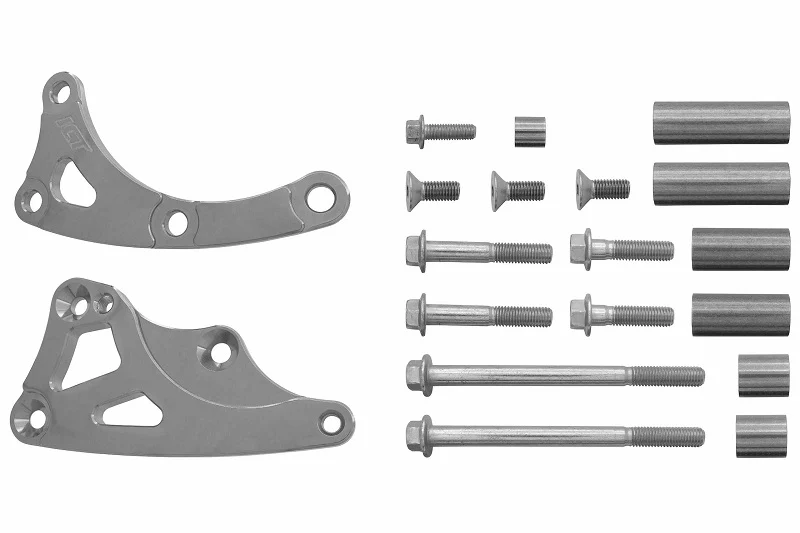

  • Includes: alternator bracket and mounting hardware
  • Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
  • Compatible with all GM LS series engine cylinder heads
  • If needing to extend your alternator harness connection, use ICT# WEALT30 (4-pin alternator) or WEALT40 (2-pin)

Compatible with: 670K6 (67.0 inch) belt when used with ICT 551581-3 power steering kit for turbo.
For non-power steering, use ICT Billet 551596-3 manual tensioner (or complete kit with water pump spacers 551573-LS01WP)


*NOT compatible with ICT #551675 coolant crossover kit with steam vent port

$48.65

Original: $138.99

-65%
ICT Billet LS Truck Turbo Alternator Relocation Bracket for LS3 LS1 Water Pump—

$138.99

$48.65

Product Information

Shipping & Returns

Description

LS Truck Turbo Alternator Bracket



  • Water Pump - Compatible with:  1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)
  • Crank Pulley - Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
  • Alternator - Use 105 or 145 amp alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)
  • Includes: alternator bracket and mounting hardware
  • Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
  • Compatible with all GM LS series engine cylinder heads
  • If needing to extend your alternator harness connection, use ICT# WEALT30 (4-pin alternator) or WEALT40 (2-pin)

Compatible with: 670K6 (67.0 inch) belt when used with ICT 551581-3 power steering kit for turbo.
For non-power steering, use ICT Billet 551596-3 manual tensioner (or complete kit with water pump spacers 551573-LS01WP)


*NOT compatible with ICT #551675 coolant crossover kit with steam vent port
