ICT Billet LS1 Camaro - Billet Low Mount Alternator Bracket Kit w/ Pulley
1998-2002 LS1 CamaroĀ (OEM Mounting Location)Ā Alternator Bracket
- Requires: 1998-02 Camaro LS1 (GTO any year) crank pulley (12553118)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

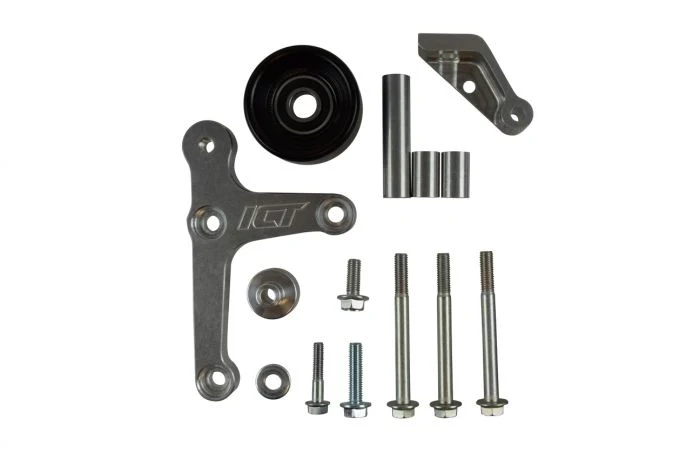

- Includes: alternator bracket, idler pulley, rear support, and mouting hardware
- **Alternator: Suggested part # 19244779. (will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), Will *fit any other LS powered vehicle alternators with any amperage.
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
*May require slight grinding on block (see photos) if using a 145/160 amp alternator (105 amp alternator is a direct fit)
**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the 2nd M10-1.5mm hole.Ā This hole is in a non-critical part of the block that is away from the cylinder, oil, and water jackets.Ā Ā This bracket only bolts to the front face of the engine block.
Requires 790K6 (79.0inch) belt while using 105 amp alternator (192447799) and OEM 1998-02 Camaro power steering bracket or ICT 551523-2. Ā For engines without power steering, use ICT Billet belt and pulley kit part # 551550
$43.75
Original: $124.99
-65%ICT Billet LS1 Camaro - Billet Low Mount Alternator Bracket Kit w/ Pulleyā
$124.99
$43.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
1998-2002 LS1 CamaroĀ (OEM Mounting Location)Ā Alternator Bracket
- Requires: 1998-02 Camaro LS1 (GTO any year) crank pulley (12553118)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Includes: alternator bracket, idler pulley, rear support, and mouting hardware
- **Alternator: Suggested part # 19244779. (will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), Will *fit any other LS powered vehicle alternators with any amperage.
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
*May require slight grinding on block (see photos) if using a 145/160 amp alternator (105 amp alternator is a direct fit)
**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the 2nd M10-1.5mm hole.Ā This hole is in a non-critical part of the block that is away from the cylinder, oil, and water jackets.Ā Ā This bracket only bolts to the front face of the engine block.
Requires 790K6 (79.0inch) belt while using 105 amp alternator (192447799) and OEM 1998-02 Camaro power steering bracket or ICT 551523-2. Ā For engines without power steering, use ICT Billet belt and pulley kit part # 551550
