Wegner Automotive LSX GM LSA 1.9L Drive Kit | LSA, Camaro, Truck Offset

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12

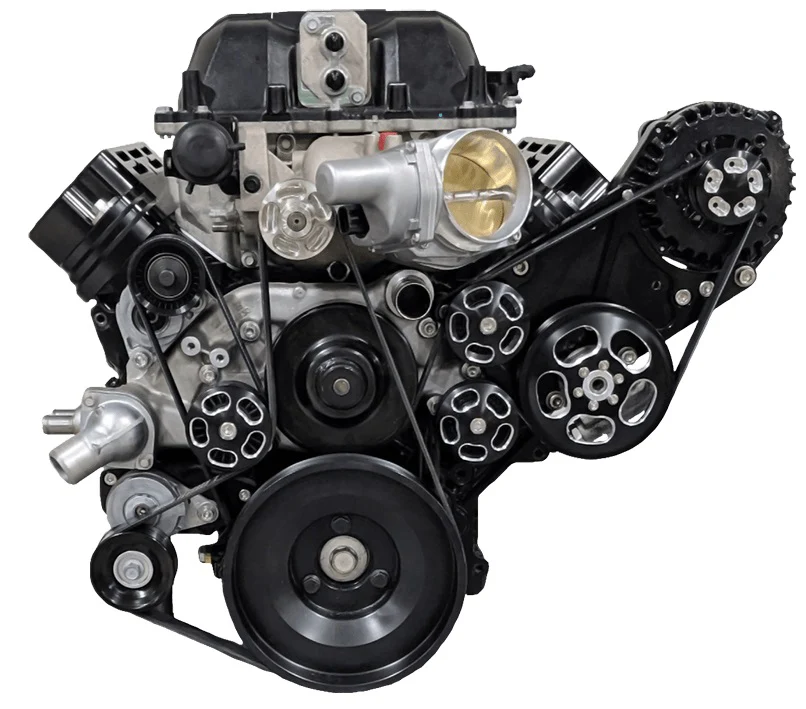

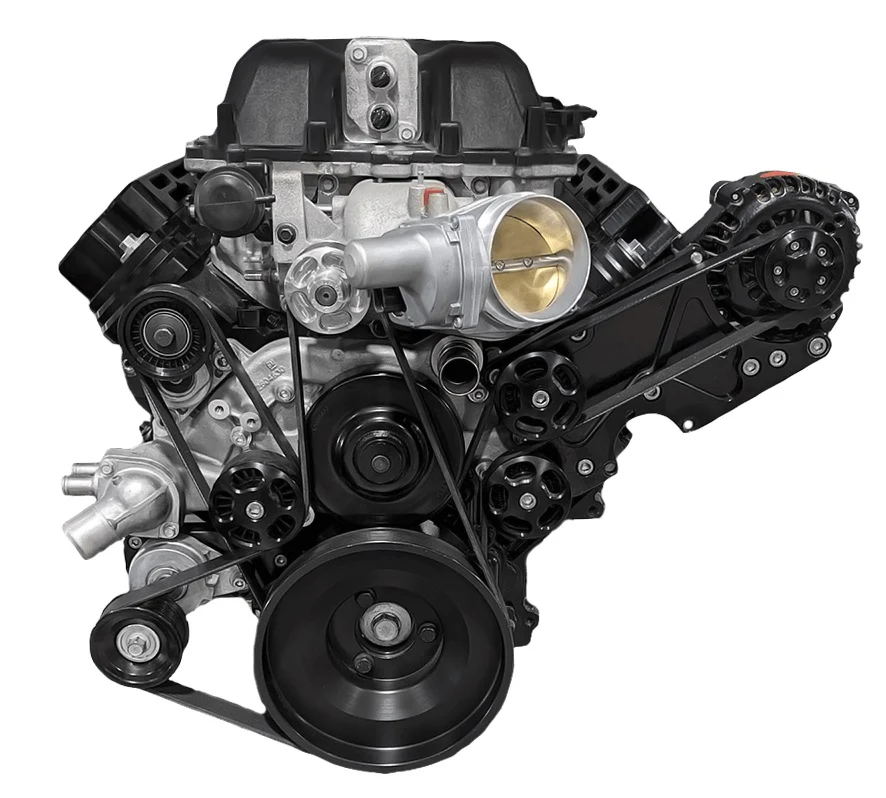

Wegner Automotive LSX GM LSA 1.9L Drive Kit | LSA, Camaro, Truck Offset

WAK053 GM LSA 1.9L

LSA Drive

Ā This LSA drive kit was engineered for high performance street use with key features such as:

  • Supercharger runs on dedicated 8 rib belt for max overdrive
  • Runs SC on OE LSA alignment so you can run stock damper and SC pulley for stock boost
  • Max pulley belt wrap for NO slip, extra idler pulley to give power steering complete wrap
  • Rigid design eliminates component flex
  • Internal fan alternator cools better while also allowing for more RPM
  • High quality & heavy duty components
  • CAD designed & CNC machined brackets & pulleys
  • Drive will support SC pulleys for up to 875 HP
  • Runs OE water pump
  • Drive will work with 90mm & 102mm DBW Throttle Body

All our accessory drives are built to order - please allow 4-6 weeks for delivery

Note: Only Billet components would come in custom finish. Factory components would come in factory finish.Ā


Our baseĀ WAK047Ā Accessory DriveĀ includes the following -

  • Heavy Duty Gates Belt Tensioners
  • Standard Internal Fan 170 Amp 1 Wire or GM 2Ā pinĀ Late Model Powermaster Alternator (Upgrade to 225 or 370)
  • GM Type 2 Power Steering Pump
  • OE LSA / LS3 Water Pump
  • OE Sanden SD7 AC Compressor
  • All necessary Wegner Automotive precision CNC Machined Billet brackets, Pulleys, and Stainless-Steel Mounting Hardware

Crank Pulley

Utilizes OEM LSA crank pulley

Options:
ATI damper crank pulley
Supercharger pulley diameter: OEM, 5%, 11%, 15%, or 18.5% overdrive


Power steering pump

GM Type II Style PS Pump

Options:
- Attached PS Pump reservoir (standard) Optional fittings (6AN, 10AN) for Remote Res.

Alternator

170 Amp single wire or GM 2 pinĀ with internal fan
Optional: 225 or 370 Amp upgrade


Finish Color

  • Solid Black
  • Machined Aluminum
  • Two-Tone Diamond Cut ($100)
  • Polished Aluminum($300)

Optional Alternator

  • 170 Amp Powermaster
  • 225 Amp Powermaster ($150)
  • 370 Amp Mechman ($300)

Power Steering Reservoir

  • Power Steering Reservoir Attached to Pump
  • Power Steering -6,-10 A/N fittings for Remote Mount

Air Conditioning

Sanden SD7 AC Compressor


Supercharger Pulleys

  • Multiple sizes available depending on engine build and desired boost
