Wegner Automotive LSX Magnuson 2.3L Drive Kit | Corvette (Y-Body) Offset
WAK041 Magnuson 2.3L
Corvette Offset

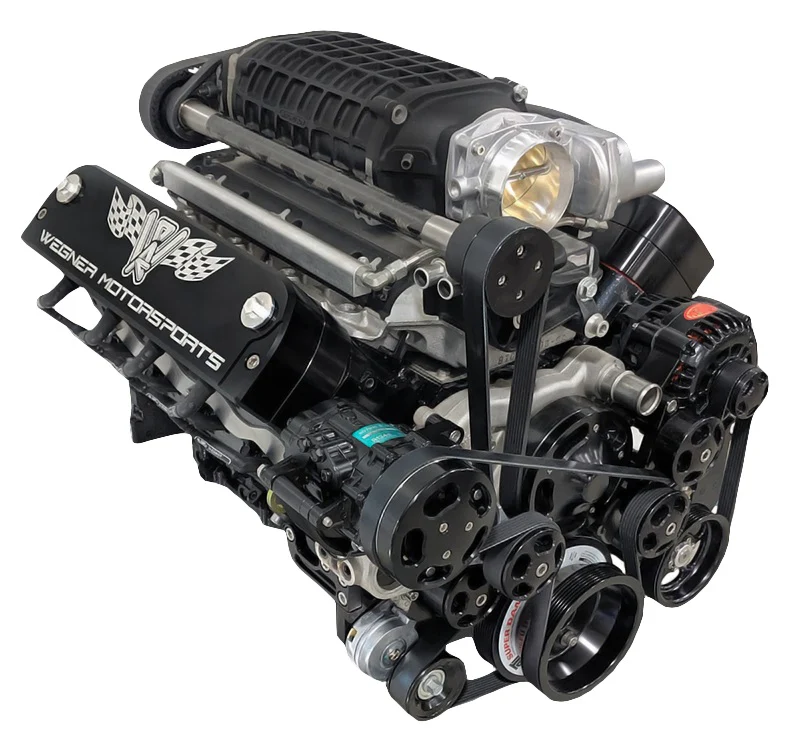

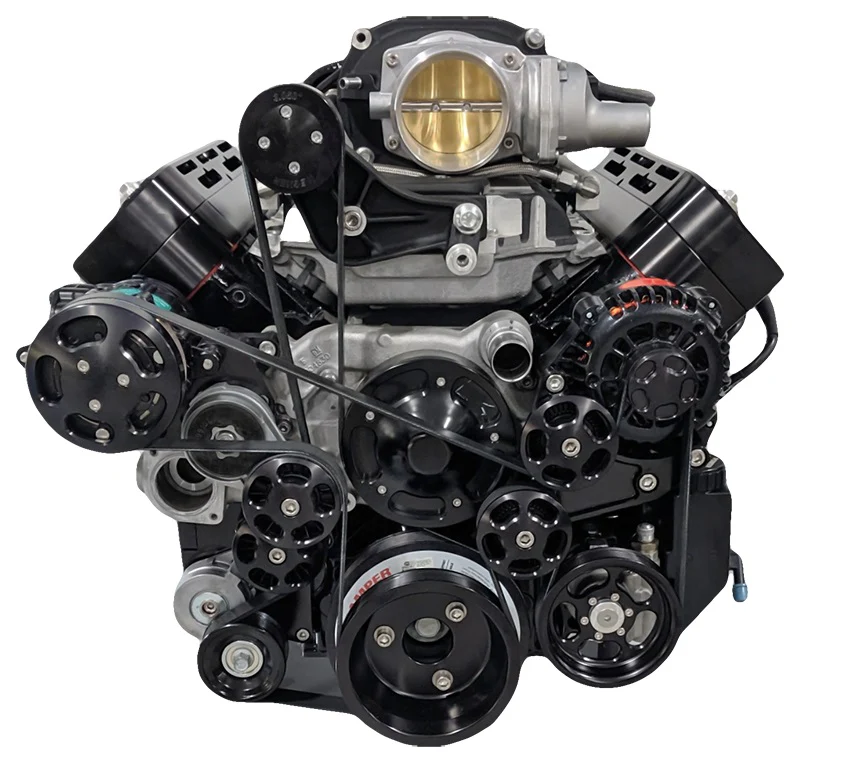

The WAK041 Magnuson Hot Rod 2300Ā Supercharger Accessory Drive Kit includes:
- ATI Y-body (Vette) 8 rib Damper- OE diameter or 12% overdrive
- Heavy Duty Gates Belt Tensioners
- Standard Internal Fan 170 Amp 1 Wire or GM 2Ā pinĀ LateĀ Model PowerMaster Alternator
(Optional Upgrade: PowerMaster 225 Amp Internal Fan 1 Wire Alternator, installed on same bracket, longer belt) - PSC GM Type 2 Power Steering Pump with or without attached reservoir
- OE LSA /LS3 Water Pump
- OE Sanden SD7 AC Compressor
- All necessary Wegner Automotive CNC MachinedĀ Billet Brackets, Pulleys, and Stainless Hardware
- Available in Solid Black Anodize, Dual Tone,Ā and Machined Finish
Kit will NOT fit with VVT front covers.
All our accessory drives are built to order - please allow 4-6 weeks for delivery
Note: Only Billet components would come in custom finish. Factory components would come in factory finish.Ā
ATI damper crank pulley
Options:
Supercharger crank pulley diameter; OEM or 12% overdrive
Power steering pump
GM Type II Style PS Pump
Options:
- Attached PS Pump reservoir (standard) Optional fittings (6AN, 10AN) for Remote Res.
Alternator
170 Amp single wire or GM 2 pinĀ with internal fan
Optional: 225 or 370 Amp upgrade
Finish Color
- Solid Black
- Machined Aluminum
- Two-Tone Diamond Cut ($100)
- Polished Aluminum($300)
Optional Alternator
- 170 Amp Powermaster
- 225 Amp Powermaster ($150)
- 370 Amp Mechman ($300)
Power Steering Reservoir
- Power Steering Reservoir Attached to Pump
- Power Steering -6,-10 A/N fittings for Remote Mount
ATI Damper
- OE Diameter
- 12% Overdrive
Supercharger Pulleys
- Multiple sizes available depending on engine build and desired boost
